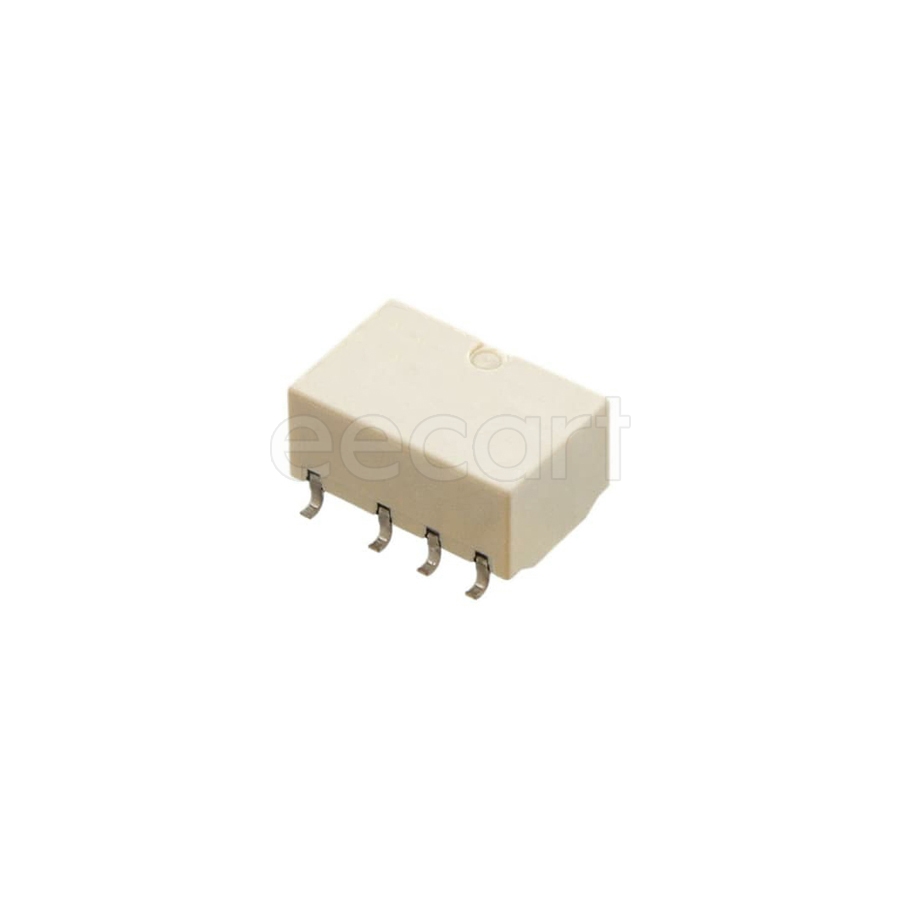

G6K-2F-TR DC12
Manufacturer:
Omron
Mfr.Part #:
G6K-2F-TR DC12
Datasheet:
Description:
Signal Relays SMD/SMT 9.1 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Height | 5.7 mm |
| Packaging | Reel |
| Depth | 7.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 2 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 60 V |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | DPDT |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 9.1 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.315 kΩ |
| Relay Type | Telecom |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Contact Current Rating | 1 A |
| switching current | 1 A |
| power consumption | 100 mW |
| Coil Power | 100 mW |
| Must Operate Voltage | 9.6 V |
| Must Release Voltage | 1.2 V |
| Switching Voltage | 125 VAC, 60 VDC |
| Termination Style | Gull Wing Lead |
| Contact Form | DPDT (2 Form C) |
